Description

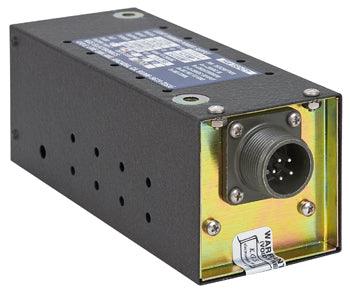

The LT-100 is a pulse width-modulated DC to DC converter that provides regulated DC power. This converter transforms an unregulated 28 VDC to a regulated and adjustable DC voltage output via a remote control potentiometer.
The LT-100 is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-100is FAA TSO-C71 recognized for airborne applications.
Features
- State of the art design for regulation and positive logic for output overvoltage protection.
- Other LT-SERIES available in various output voltages and power ratings in the same package size.
- The LT-100 is serviceable, small and lightweight.
- Maximum output voltage is adjustable with an internal trim pot.
- Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202C and MIL-T-5422F class 1A.
Specifications
Weight:
1.5 lbs (683 grams)
Dimensions:
2.3 x 2.3 x 5.8 in (5.7 x 5.7 x 14.6 cm)
Max VA Rating:
100 W
Input Voltage:
20-40 VDC, 28 VDC (nominal)
Input Current:
5.8 ADC @ 20 VDC In
4.2 ADC @ 28 VDC In
Output Voltage:
0-28 VDC
Output Current:
3.6 ADC
Efficiency:
84%
Operating Temperature:
-55°C to 71°C
Altitude:
55,000 ft
