Description

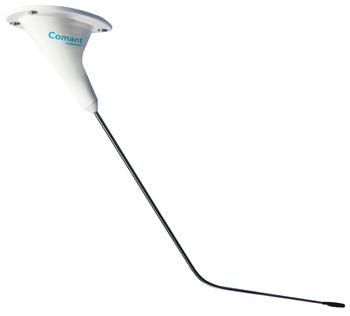

The CI 292-3 antenna is a three-through-hole-mount style FM communications bare bent whip antenna with a BNC port. This antenna features a bent tapered stainless steel radiator and a narrow mounting pattern. It is designed for use over the public service FM extended frequency 2-meter band and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- 136–174 MHz & 138–174 MHz frequencies
- Stainless steel bent whip radiator
- Vertical polarization
- Omnidirectional radiation pattern
- BNC female connectors
- Designed for light fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.60 lb
Height:
9.5 in
Frequency:
136–174 MHz; 138–174 MHz
VSWR:
3.0:1
Gain:
2.5 dB
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50 Ω
Power RF:
50 W
Material:
Die Cast Housing / Stainless Steel Whip
Finish:
White Polyurethane Enamel
Connector:
BNC Female
Temperature:
-55°C to 70°C
Altitude:
25,000 ft.
Airspeed:
250 KTAS
FAA TSO:
C37c (Class 1), C38c
RTCA Environmental:
DO-160B
Gasket:
B29205
