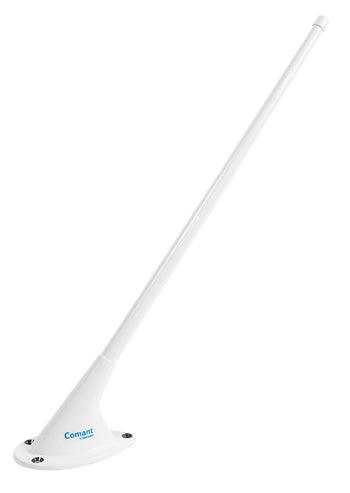

FM 2 METER WHIP ANTENNA/138-174MHz, 3 Hole Mount, BNC Female Connector & a White Finish.

COMANT INDUSTRIESSKU: CI-177-13

Price:
Sale price$893.20
Stock:
In stock

Description

The CI 177-13 antenna is a three-through-hole-mount style FM communication whip antenna with a BNC port. This antenna is designed for use over the public service FM extended frequency 2-meter band and is suitable for top mounting on light fixed-wing single-engine and multi-engine aircraft.

Features

  • 138-174 MHz frequencies
  • Vertical polarization
  • Omnidirectional radiation pattern
  • Molded base
  • 3-hole mounting
  • Enclosed radiating element
  • High strength tapered glass laminate housing

Specifications

Weight:
0.50 lb

Height:
14.5 in

Frequency:
138–174 MHz

VSWR:
3.0:1

Polarization:
Vertical

Radiation Pattern:
Omnidirectional

Impedance (RF):
50 Ω

Resistance DC:
Short Circuit

Power (RF):
50 W

Material:
Die Cast Housing/Fiberglass Whip

Finish:
White Polyurethane Enamel

Connector:
BNC Female

Temperature:
-55ºC to 55ºC

Altitude:
25,000 ft

FAA TSO:
C37b, C38b

RTCA Environmental:
DO-138

Gasket:
C29205
