Key Features:
-
Condition: Brand New
-
Model: CH52-E
- Outdoor Multisensor Camera
-
Image Resolution: 20 MP
-
Optical Zoom: 2.5 X
-
IR Range: 30 M
-
With 365 days onboard storage (8TB)
- PoE Plus
- 10 years Warranty
Camera features
|
Image Sensor
|
4 x 1 / 2.8" Progressive CMOS
|
|
Sensor Resolution
|
4 x 5MP (2688 x 1944)
|
|
Lens Type
|
Varifocal;
Motorized zoom
|
|
Focal Length
|
3.7 - 7.7mm
|
|
Aperture
|
F1.9 - F2.9
|
|
Iris
|
N/A
|
|
Field of View (LDC ON2)
|
Horizontal: 37°-89° (35°-82°)
Vertical: 29°-65° (26°-60°)
Diagonal: 46°-99° (43°-92°)
|
|
Sensor Movement
|
Tilt: +0° to 105° for each lens from horizon
Pan: +/- 90° for each lens
Rotation: +/- 90° for each lens
|
|
Shutter Speed
|
1 / 5 sec. to 1 / 32,000 sec.
|
|
Day/Night
|
IR-cut filter for day and night function
|
|
IR Cut Filter
|
Yes
|
|
IR Range
|
30m / 98ft; non-adjustable
|
|
Minimum Illumination
|
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
|
|
Onboard Storage
|
Capacity: 8TB
Card: MicroSD, SDXC
|
|
CPU
|
4 x Ambarella CV25S88
|
Standard video settings
|
Compression
|
H.265, H.264
|
|
Frame Rate
|
24fps
|
|
Live Streaming Settings
|
High quality (HQ): 1,000 - 4,500 Kbps (1,500 Kbps default)
Standard quality (SQ): 600 Kbps
|
|
WDR Technology
|
120dB dynamic range, true WDR, dual exposure
|
Standard audio settings
Power and network
|
Power Input
|
With IR: IEEE 802.3bt Type 3 PoE++
Without IR: IEEE 802.3at Type 2 PoE+
Extended temperature range: IEEE 802.3bt Type 3 PoE++
|
|
Power Consumption
|
With IR: 42.5 - 57V, 0.65-0.49A, 27.69W
Without IR: 42.5 - 57V, 0.46-0.34A, 19.54W
Extended temperature range: 42.5 - 57V, 0.91 - 0.68A, 38.68W
|
|
Connectivity
|
RJ-45 cable connector for Network/PoE connection; 10 / 100 Mbps
|
General
|
Operating Temperature
|
-40°C to 50°C / -40°F to 122°F
|
|
Humidity
|
0 to 90%
|
|
Certifications
|
FCC, ICES-003, UL/IEC 62368-1, CE, RCM, UKCA, VCCI, NDAA, BIS, IK10 impact rating, IP66 weather rating
|
|
LED Indicator
|
System power and status indicator
|
|
Warranty
|
10 Years
|
Mechanical
|
Weight
|
Camera: 2,900g / 102.3oz
Mount plate: 536g / 18.9oz
|
|
Dimensions
|
Ø: 275mm / 10.82in, H: 118mm / 4.65in with mount plate
Ø: 267mm / 10.51in, H: 114mm / 4.49in without mount plate
|
|
Body
|
Aluminum, plastic dome trim
|
Software capabilities
|
Alerts
|
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
|
|
People analytics
|
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis
|
|
Vehicle analytics
|
Vehicle search, attribute search
|
|
Streaming and storage
|
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
|
|
License Plate Recognition
|
License Plate of Interest alerts, license plate indexing
|
|
Sharing and privacy
|
Live Links, live face blur, privacy regions, audit log
|
Description:

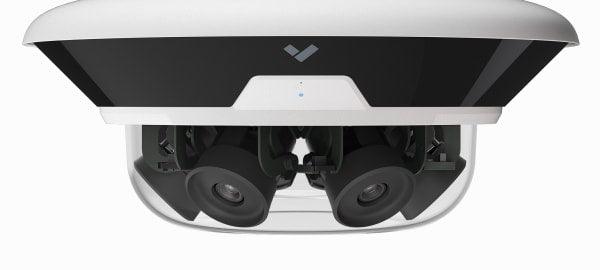

Ensure the utmost safety for your property with the Verkada CH52-E, a cutting-edge outdoor multisensor camera designed to provide unparalleled surveillance. This brand-new model, CH52-E, boasts a remarkable image resolution of 20 MP, delivering crystal-clear visuals that leave no detail unnoticed. Whether you're securing your home or business, this outdoor camera is the ideal choice for safeguarding your assets.
Powerful Optical Zoom and Night Vision Capabilities
Equipped with a 2.5X optical zoom lens, the Verkada CH52-E allows you to zoom in on specific areas, providing a closer look when needed. Additionally, the camera features an impressive infrared (IR) range of 20 meters, ensuring exceptional night vision capabilities. Say goodbye to blind spots and trust in the comprehensive coverage offered by this top-of-the-line security solution.
365 Days Onboard Storage - 8TB Storage Capacity
With an enormous 8TB onboard storage capacity, the Verkada CH52-E enables continuous recording for an entire year. Rest easy knowing that your CCTV cameras are equipped to handle extended surveillance periods, providing you with peace of mind and the ability to review footage whenever necessary. The ample storage ensures that crucial moments are never missed.
Power over Ethernet (PoE Plus) for Simplified Installation
Experience hassle-free installation with Power over Ethernet (PoE Plus) technology. This feature allows both data and power to be transmitted through a single cable, streamlining the setup process and eliminating the need for additional power sources. Enhance the efficiency of your security system while maintaining a clean and organized installation.
Versatile Application - Ideal for CCTV Cameras and Network Surveillance
The Verkada CH52-E is not just a security camera; it's a versatile solution suitable for both CCTV cameras and network surveillance. Whether you are looking to monitor your home or enhance the security of your business premises, this multisensor camera adapts to various surveillance requirements.
Elevate your security strategy with the Verkada CH52-E Outdoor Multisensor Camera. Trust in its advanced features, exceptional image quality, and extensive storage capacity to safeguard your property effectively. Order yours today and experience the peace of mind that comes with top-tier security technology.
