Key Features:
-
Condition: Brand New
- Series: CM42

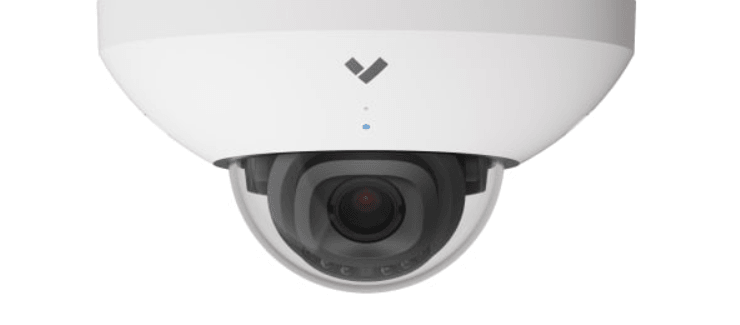

- Indoor Mini Dome Camera
-
Image Resolution: 5 MP
-
Diagonal Field of View: 128°
-
Focal Length: 2.8mm
-
IR Range: 20 M
-
With 365 days onboard storage (2TB)
- PoE Plus
- 10 years Warranty
Camera features
|
Image Sensor
|
1 / 2.8″ Progressive CMOS
|
|
Sensor Resolution
|
5MP (2688 x 1944)
|
|
Lens Type
|
Fixed
|
|
Focal Length
|
2.8mm
|
|
Aperture
|
F1.6
|
|
Iris
|
Fixed
|
|
Field of View (LDC ON2)
|
Horizontal: 95° (79°)
Vertical: 69° (62°)
Diagonal: 130° (96°)
|
|
Sensor Movement
|
Tilt: 60°
Pan: 350°
Rotation: 180°
|
|
Shutter Speed
|
1 / 30 sec. to 1 / 10,000 sec.
|
|
Day/Night
|
IR-cut filter for day and night function
|
|
IR Cut Filter
|
Yes
|
|
IR Range
|
20m / 66ft
|
|
Minimum Illumination
|
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
|
|
Onboard Storage
|
Capacity: 2TB
Card: MicroSD, SDXC
|
|
CPU
|
Ambarella CV25S88
|
Standard video settings
|
Compression
|
H.265, H.264
|
|
Frame Rate
|
24fps
|
|
Live Streaming Settings
|
High quality (HQ): 1,000 - 4,500 Kbps (1,500 Kbps default)
Standard quality (SQ): 600 Kbps
|
|
WDR Technology
|
104 dB dynamic range, true WDR, dual exposure
|
Standard audio settings
|
Audio
|
Supported
|
|
Audio Capacity
|
One-way audio
|
|
Interface
|
Built-in microphone
|
|
Effective Range
|
5m / 15ft
|
Power and network
|
Power Input
|
With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
|
|
Power Consumption
|
With IR: 37-57V, 0.165-0.107A, 6.12W
Without IR: 37-57V, 0.086-0.056A, 3.21W
Extended temperature range: N/A
|
|
Connectivity
|
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
|
|
RTSP
|
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes
|
General
|
Operating Temperature
|
-10°C to 50°C / 14°F to 122°F
|
|
Humidity
|
0 to 90%
|
|
Certifications
|
FCC, ICES, RCM, VCCI, CE, UKCA, EN 50155 railway compliance, UL/cUL/IEC 62368-1, NOM, IK08 impact rating
|
|
LED Indicator
|
System power and status indicator
|
|
Warranty
|
10 Years
|
Mechanical
|
Weight
|
Camera: 290g / 10.23oz
Mount plate: 98g / 3.46oz
|
|
Dimensions
|
Ø: 124.5mm / 4.9in, H: 71.5mm / 2.8in
|
|
Body
|
Aluminum, plastic dome trim
|
Software capabilities
|
Alerts
|
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
|
|
People analytics
|
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis
|
|
Vehicle analytics
|
Vehicle search, attribute search
|
|
Streaming and storage
|
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
|
|
License Plate Recognition
|
License Plate of Interest alerts, license plate indexing
|
|
Sharing and privacy
|
Live Links, live face blur, privacy regions, audit log
|
Description:
Ensure the safety of your space with the brand-new Verkada CM42, a cutting-edge Indoor Mini Dome Camera designed for maximum security. This CCTV camera, part of the esteemed CM42 series, promises unparalleled surveillance capabilities to safeguard your premises effectively.
Crystal-Clear 5MP Image Resolution for Precise Monitoring
With an impressive 5-megapixel image resolution, the Verkada Indoor Mini Dome Camera delivers crystal-clear footage, allowing you to monitor every detail with precision. Capture and record high-quality images, making this Network Surveillance Camera an ideal choice for both residential and commercial applications.
Wide 128° Diagonal Field of View for Comprehensive Coverage
The Verkada Indoor Mini Dome boasts a wide 128° diagonal field of view, providing expansive coverage for your indoor space. No corner goes unnoticed, ensuring that every inch of your property is under vigilant watch. Trust in the CM42 series to be your ultimate security companion.
Versatile 2.8mm Fixed Lens with 20 M IR Range
Equipped with a 2.8mm fixed lens, this Indoor Mini Dome Camera offers versatility in capturing different perspectives. Additionally, the impressive 20 meters of infrared (IR) range ensures reliable monitoring even in low-light conditions, making it an ideal choice for 24/7 surveillance.
365 Days Onboard Storage with Massive 2TB Capacity
Experience the convenience of year-round recording with the Verkada CM42's onboard storage of 365 days. The substantial 2TB storage capacity ensures that your footage is securely stored, providing you peace of mind knowing that your valuable recordings are readily accessible whenever needed.
Power over Ethernet (PoE Plus) for Simplified Installation
The Verkada CM42 is designed with Power over Ethernet (PoE Plus) technology, streamlining the installation process. Enjoy a hassle-free setup that combines both power and data transmission over a single cable, making it an efficient and cost-effective solution for your security needs.
