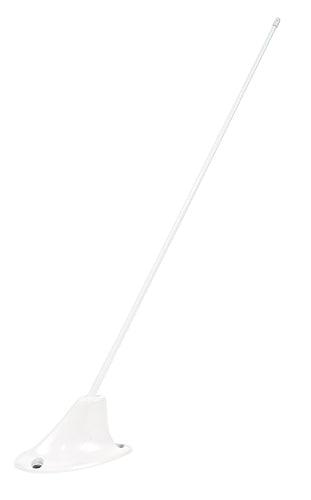

VHF ROD ANTENNA/FM COMM, BNC Female Connector, Vertical, 138-174MHz, 3 Hole Mount, & a White Finish.

HARRIS CORPSKU: DM C63-4/A

Price:
Sale price$1,178.00
Stock:
In stock

Description

The DM C63 series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. The DM C63-4/A vertically polarized antenna covers a frequency range of 137 MHz – 137 MHz for both transmitting and receiving applications. All DM C63-Series antennas are supplied with a gasket and a doubler plate.

Features

  • 138 MHz – 174 MHz frequency range
  • 3.0:1 VSWR
  • Special purpose applications only - TSO does not apply

Specifications

Weight:
8 oz

Dimensions:
17.0 in, height
4.63 in, base

Connectors:
BNC female

Finish:
white

Frequency Range:
138 MHz – 174 MHz (DM C63-4/A)

VSWR:
3.0:1 (DM C63-4/A)

Polarization:
vertical

Impedance:
50Ω

Gain:
equivalent λ/4 stub

Power:
50 watts

Radiation Pattern:
omnidirectional

Approvals:
n/a (DM C63-4/A)
