Description

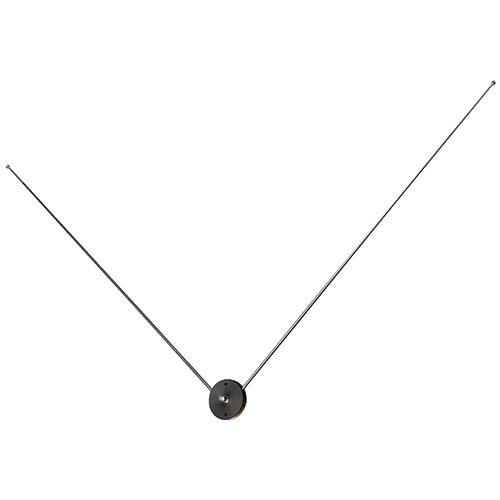

The antenna is a four-through-hole-mount style VOR/LOC/GS V dipole antenna with a BNC port. This antenna features a single navigation output that can be used in conjunction with signal diplexers to achieve the desired avionics signal input. It is designed with detachable radiator elements and is suitable for mounting on the aircraft vertical stabilizer on light fixed-wing single-engine and multi-engine aircraft.
Features
- 108-118 MHz & 329-335 MHz frequencies
- Horizontal polarization
- Dipole radiation pattern
- Non-removable radiating elements
- For light fixed-wing single-engine and multi-engine aircraft installations
- 4-hole mounting pattern
Specifications
Weight:
0.35 lb
Height:
17-5/8 in
Frequency:
108–118 MHz (VOR/LOC)
329–335 MHz (GS)
VSWR:
3.0:1
Polarization:
Horizontal
Radiation Pattern:
Dipole
Impedance:
50Ω
Power RF:
Receive Only
Finish:
Black Housing/Stainless Steel Whips
Connector:
BNC
Temperature:
-55ºC to 85ºC
Altitude:
25,000 ft
Mounting:
Four-hole mounting pattern
FAA TSO:
C34c, C36c, C40a
RTCA MOPS:
DO-192, DO-195, DO-196
RTCA Environmental:
DO-160
